Vehicle details
- Make
- Ford
- Model
- Escort
- Year
- 1994
- Transmission
- Manual
- Fuel Type
- Petrol
- Body Style
- Rally
- Colour
- Black
THE LISTING
About this vehicle

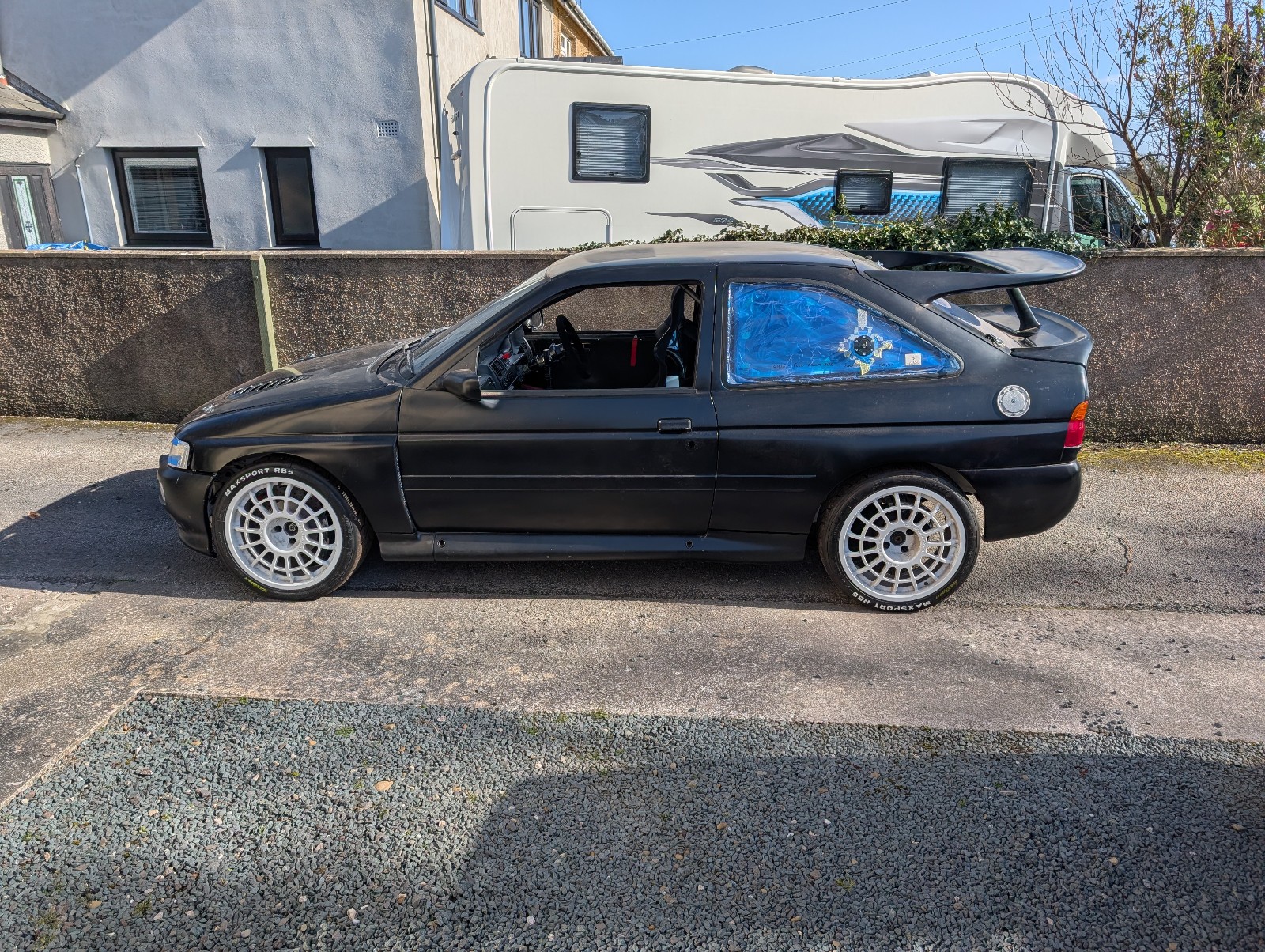

Escort cosworth track / rally car with non cosworth ID.Unfinished Project - Its almost there, it runs, drives, stops, but needs final finishing before using. I've gotten into rallying and am selling this to make space for a new rally car build.
BodyGenuine cosworth shell extensively modified. Rollcage (90s spec), through to turretsReinforced inner wingsRear WRC turretsAll rust / rot cut out and replaced, including drivers floor pan and rear chassis legSteel front wingsGRP bumpers and skirtsMid mounted fuel tank
EngineFord / Cosworth BOA 2.9V6Standard engine, with gaskets replaced and tidied upCustom intake pipeCusomt breathersFresh std clutch
TransmissionMT75 AWD gearbox and diffs from an XR4x4. cleaned, inspected, and oil changedHydraulic clutch conversionStandard front and rear diffs, cleaned, inspected, and oil changedQuick shift, shift cradle solid mountedRear diff solid mountNew driveshafts all round
SuspensionFront suspension - rose joint compression struts. Grp N 41mm bilstein struts with -2deg camber, adjustable top mountsRear suspension - modified rear arms, mag rear coilover dampers, All stripped, rebuilt / repaintedUprights / hubs stripped, cleaned, painted, and new bearings all round
BrakesFront brakes- Jag XJ-R 355mm discs and calipers, serviced, new pads, and braided linesRear brakes, new standard cosworth rear vented discs, rebuilt calipers, braided brake linesBias pedal box, with adjuster
Custom race style wiring loom, dash, electrics, central relay / switch panel
Full braided fuel system, with AN fittings throughout. Motorsport fuel pump, pressure regulator, custom fuel tank.
There are a lot of modifications, too many to list. There is a full 50 page build thread covering it all here.
https://forum.retro-rides.org/thread/199456/1994-ford-cosworth-moves-video?page=1
Video walk around
https://youtu.be/soSAB5XNkXc
The car has lived its life as a rally car / race car / track car its not a pristine road car, it is very custom.
I'd consider PX on MSUK current passport rally cars, Citroen C2R2, MK2 escort, or similar.
Work to finish.
As a track / fun road car. The brakes etc work in so far as ive driven up and down the driveway and they stopped the car. Balance bar needs setup. I was intending to replace all the disc mounting bolts. The clutch could do with the master cylinder swapping to a different size for a better clutch feel, and a pedal stop fitting. Suspension needs set up, and front anti roll bar needs fitting. Bumpers need mounting properly, as do the indicators and side lights. Engine needs a proper run. It may need replacement O2 sensors as its running very rich. There's some sensor wiring to connect up, and the dashboard needs setup to the sensors. Notably speedo connections and water temp need sorted.
There may be other bits, but I've only driven it about 20m on the drive. Its not had a shakedown.
Vehicle specification
- Make: Ford
- Model: Escort
- Year: 1994
- Transmission: Manual
- Fuel Type: Petrol
- Body Style: Rally
- Colour: Black
